High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration

High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration
High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration

Grande immagine :  High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration

Dettagli:
Certificazione: ISO
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: 50
Contatto

High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration

descrizione
Modello n.: AQ BQ NQ HQ PQ Modello: BQ BQ3 NQ NQ2 NQ3 HQ HQ3 PQ PQ3
Materiale: diamante Utilizzo: Esplorazione geotecnica/minerale
Arti manifatturiere: Sinterizzazione Tipi: pezzo di centro del diamante
Funzione: Perforazione del carotaggio della roccia Tipo di macchina: Attrezzatura di perforazione
Durezza: F1-F12 Industria: Servizio geologico
Superficie: Finitura liscia Nome del prodotto: Bit di diamante impregnato
Tipo di roccia: Argilla, arenaria dura, sienite, quarzite, ecc. Altezza della corona: 12 mm
Diametro del bit: Nqhqpq Tipo di superficie: Superficie Naturale e Impregnata
Pacchetto di trasporto: scatola di cartone/legno Specifica: BQ, NQ, HQ, PQ
Marchio: Migliore Origine: Wuxi Cina
Codice SA: 82071910 Capacità produttiva: 50000 pezzi/anno
Evidenziare:

impregnated diamond core drill bits

,

diamond core bits for drilling

,

exploration diamond core drill bits

High-Quality ImpregnatedDiamond Core Drill Bits for Drilling and Exploration
Product Description



Exploration is a very important way to identify if the rock contains any interesting minerals, also it can be used for construction industries,diamond core drilling is one of the common method to do such drilling and get the core samples from rock and soil, the samples will be sent for analysis. In the process of drilling, high performance bit is a key factor for scientific and professional drilling.
High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 0Product Features
High-Quality Materials: Our diamond drill bits are made from high-grade industrial diamonds, ensuring outstanding performance under various rock and geological conditions
Superior Cutting Performance: With advanced manufacturing techniques and scientific design, our drill bits possess excellent cutting abilities, efficiently penetrating hard rock layers and improving work efficiency.
Strong Durability: Our drill bits undergo rigorous quality control, featuring excellent wear resistance and impact resistance, which leads to a longer lifespan and reduced replacement and maintenance costs.
Diverse Options: We offer a variety of specifications and models of diamond drill bits to meet the needs of different geological exploration projects. Whether dealing with soft soil layers or hard rock formations, we provide the right drill bit for your project.
Product Parameters



Type AQ/B BQ/B NQ/B NQ3/B HQ/B HQ3/B PQ/B
O.D(mm) 47.7 59.6 75.4 75.4 95.7 95.7 122.3
O.D(inch) 1.88 2.35 2.97 2.97 3.77 3.77 4.81
I.D(mm) 27.1 36.5 47.7 45.2 63.6 61.2 85.1
I.D(inch) 1.07 1.44 1.88 1.78 2.50 2.41 3.35

Type PQ3/B NWM/B NWG/B NMLC/B HMLC/B NQTT/B HQTT/B
O.D(mm) 122.3 59.6 75.4 75.4 98.9 75.4 95.7
O.D(inch) 4.81 2.35 2.97 2.97 3.89 2.97 3.77
I.D(mm) 83 36.5 54.8 52.1 63.6 45 61.1
I.D(inch) 3.26 1.44 2.16 2.05 2.5 1.77 2.4

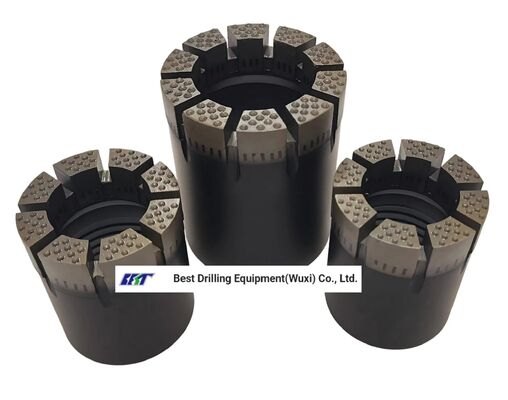

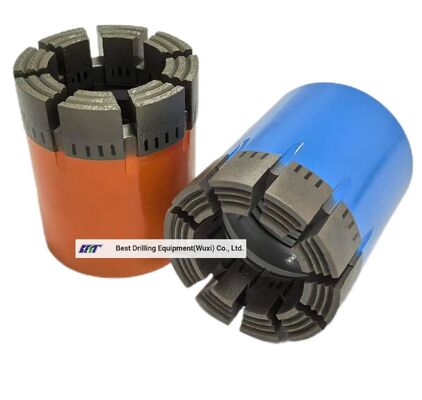

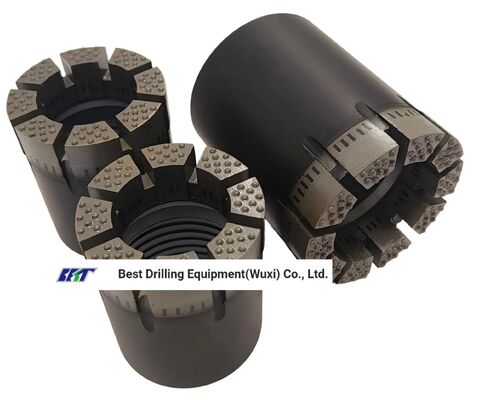

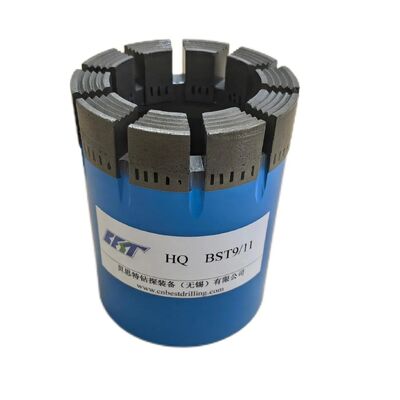

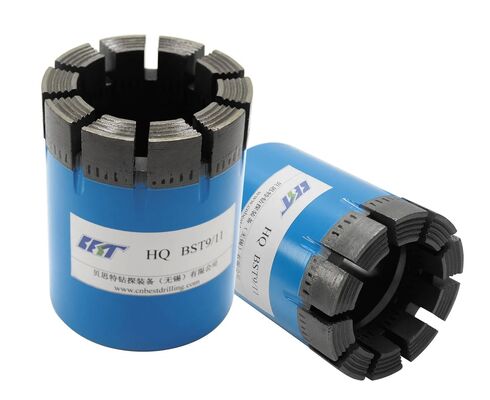

Detailed Photos

High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 1High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 2

High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 3High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 4

Carbon bit choice chart

Rock Type
Rock Hardness
Abrasiveness
Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble
Soft
Medium		 BST 1/3

Sandstone,Lithoid Limestone, Limonite
Medium Soft
Very High		 BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite
Medium
High		 BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard
Medium High		 BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone
Hard
Medium To Low		 BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert
Utral Hard
Low		 BST 14

Company Profile

High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 5

Workshop
High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 6
Related Products



Diamond Core Bit
Casing Shoe
Diamond Reaming Shell
Drill Rod
Wireline core barrel assembly
Overshot assembly
Water Swivel
Hoisting Plug
Subs
Adapter coupling/locking coupling
Core lifter/core lifter case/stop ring
Wrench
Inner tube stabilizer
Landing ring
Core Barrels kit
Loading chamber
High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 7
Packaging & Shipping



High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 8
Field Work
High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 9
Exhibition



High-Quality Impregnateddiamond Core Drill Bits for Drilling and Exploration 10
FAQ



Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.

Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.

Q3. What are the advantages of your company?
A3: We have many professionals, technical personnel, more competitive prices and best after-sales service than other companies.

Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.

Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.

Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
