Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling
Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling

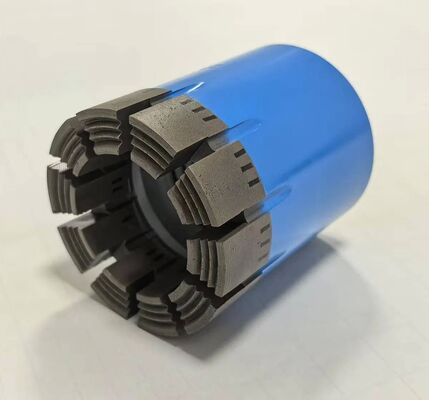

Grande immagine :  Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling

Dettagli:
Certificazione: ISO
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: 50
Contatto

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling

descrizione
Modello: Bq Nq Nq2 Nq3 Hq Hq3 Pq Pq3 Materiale: diamante
Utilizzo: Esplorazione geotecnica/minerale Arti manifatturiere: Sinterizzazione
Tipi: pezzo di centro del diamante Funzione: Perforazione del carotaggio della roccia
Tipo di macchina: Attrezzatura di perforazione Durezza: F1-F12
Industria: Servizio geologico Superficie: Finitura liscia
Nome del prodotto: Bit di diamante impregnato Tipo di roccia: Argilla, arenaria dura, sienite, quarzite, ecc.
Altezza della corona: 12 mm Diametro del bit: AQ BQ NQ HQ PQ NQ3 HQ3 PQ3
Tipo di superficie: Superficie Naturale e Impregnata Pacchetto di trasporto: scatola di cartone/legno
Specifica: NQ Marchio: Migliore
Origine: Wuxi Cina Codice SA: 82071910
Capacità produttiva: 50000 pezzi/anno
Evidenziare:

Impregnated Diamond Bit for Surface Drilling

,

Wireline Drilling Diamond Core Bit

,

Ground Drilling Diamond Bit with Warranty

Wireline Diamond Core Drill Bit for Geological Exploration
Product Description

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 0

Exploration is a very important way to identify if the rock contains any interesting minerals, also it can be used for construction industries,diamond core drilling is one of the common method to do such drilling and get the core samples from rock and soil, the samples will be sent for analysis. In the process of drilling, high performance bit is a key factor for scientific and professional drilling.
Product Features
High-Quality Materials: Our diamond drill bits are made from high-grade industrial diamonds, ensuring outstanding performance under various rock and geological conditions
Superior Cutting Performance: With advanced manufacturing techniques and scientific design, our drill bits possess excellent cutting abilities, efficiently penetrating hard rock layers and improving work efficiency.
Strong Durability: Our drill bits undergo rigorous quality control, featuring excellent wear resistance and impact resistance, which leads to a longer lifespan and reduced replacement and maintenance costs.
Diverse Options: We offer a variety of specifications and models of diamond drill bits to meet the needs of different geological exploration projects. Whether dealing with soft soil layers or hard rock formations, we provide the right drill bit for your project.
Product Parameters



Type AQ/B BQ/B NQ/B NQ3/B HQ/B HQ3/B PQ/B
O.D(mm) 47.7 59.6 75.4 75.4 95.7 95.7 122.3
O.D(inch) 1.88 2.35 2.97 2.97 3.77 3.77 4.81
I.D(mm) 27.1 36.5 47.7 45.2 63.6 61.2 85.1
I.D(inch) 1.07 1.44 1.88 1.78 2.50 2.41 3.35

Type PQ3/B NWM/B NWG/B NMLC/B HMLC/B NQTT/B HQTT/B
O.D(mm) 122.3 59.6 75.4 75.4 98.9 75.4 95.7
O.D(inch) 4.81 2.35 2.97 2.97 3.89 2.97 3.77
I.D(mm) 83 36.5 54.8 52.1 63.6 45 61.1
I.D(inch) 3.26 1.44 2.16 2.05 2.5 1.77 2.4

Detailed Photos

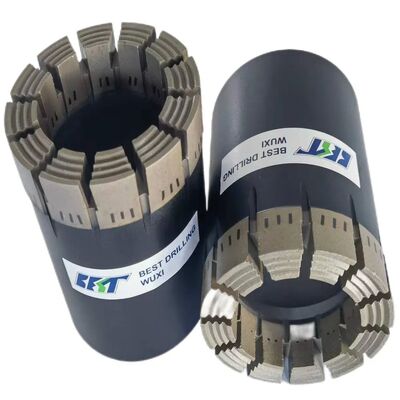

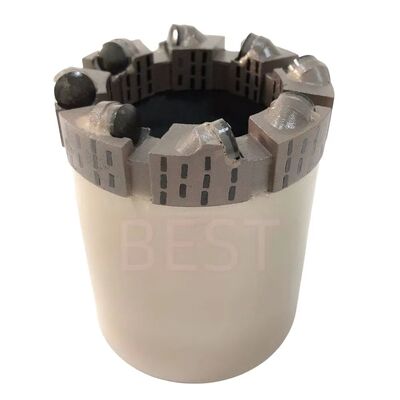

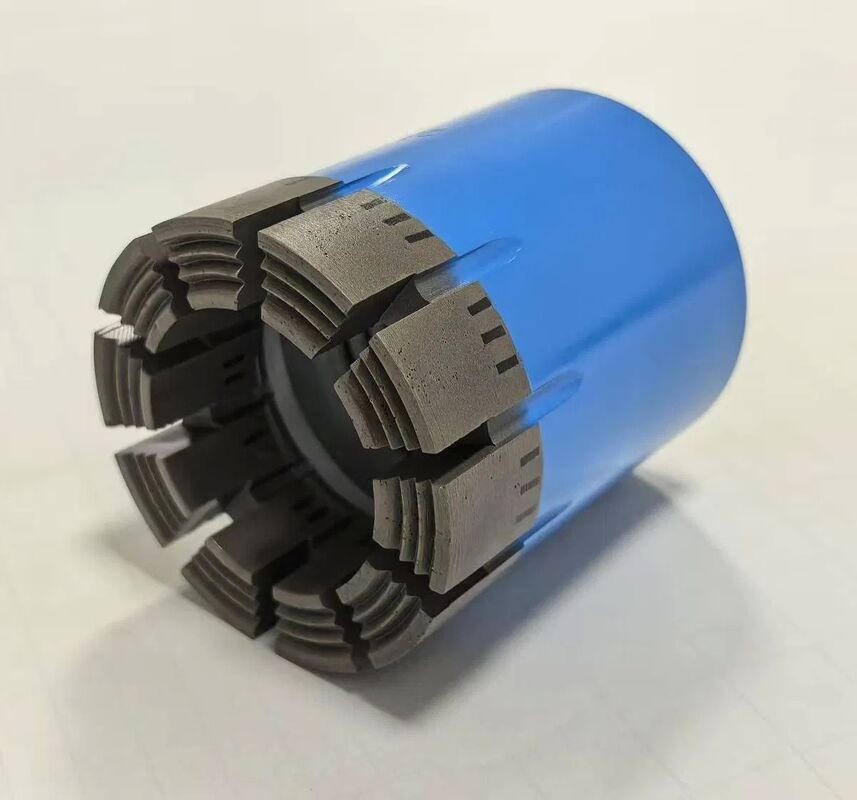

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 1Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 2Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 3

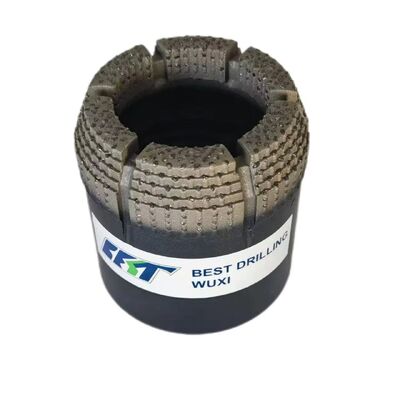

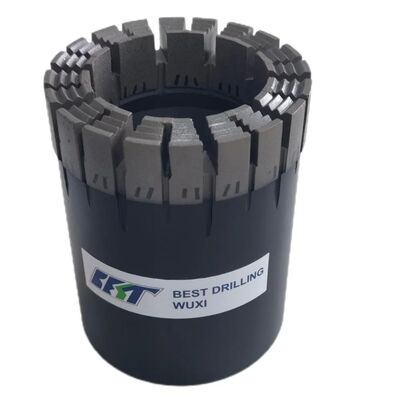

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 4Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 5

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 6Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 7
Carbon bit choice chart

Rock Type
Rock Hardness
Abrasiveness
Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble
Soft
Medium		 BST 1/3

Sandstone,Lithoid Limestone, Limonite
Medium Soft
Very High		 BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite
Medium
High		 BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard
Medium High		 BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone
Hard
Medium To Low		 BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert
Utral Hard
Low		 BST 14

Company Profile

Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 8

Workshop
Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 9
Related Products



Diamond Core Bit
Casing Shoe
Diamond Reaming Shell
Drill Rod
Wireline core barrel assembly
Overshot assembly
Water Swivel
Hoisting Plug
Subs
Adapter coupling/locking coupling
Core lifter/core lifter case/stop ring
Wrench
Inner tube stabilizer
Landing ring
Core Barrels kit
Loading chamber
Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 10
Packaging & Shipping



Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 11
Field Work
Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 12
Exhibition



Nq Impregnated Diamond Bit for Surface Ground Drilling Wireline Drilling 13
FAQ



Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.

Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.

Q3. What are the advantages of your company?
A3: We have many professionals, technical personnel, more competitive prices and best after-sales service than other companies.

Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.

Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.

Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
