High Manganese Steel Wireline Drill Rod for Geological Prospecting with 1.5m/3m Length Options

Grande immagine : High Manganese Steel Wireline Drill Rod for Geological Prospecting with 1.5m/3m Length Options

Dettagli: Termini di pagamento e spedizione:

Quantità di ordine minimo:	10
Prezzo:	40

Contatto

High Manganese Steel Wireline Drill Rod for Geological Prospecting with 1.5m/3m Length Options

descrizione

Modello n.:	AQ, BQ, NQ, HQ, PQ	Materiale:	Acciaio ad alto contenuto di manganese, 4130
Lunghezza standard:	1.5m/3m	Diametro esterno (BQ):	55,6 mm (2,19 pollici)
Diametro interno (BQ):	46 mm (1,81 pollici)	Diametro esterno (NQ):	70,1 mm (2,76 pollici)
Diametro interno (NQ):	60,1 mm (2,37 pollici)	Diametro esterno (HQ):	89 mm (3,5 pollici)
Diametro interno (HQ):	77,8 mm (3,06 pollici)	Diametro esterno (PQ):	114,3 mm (4,5 pollici)
Diametro interno (PQ):	101,6 mm (4 pollici)	Diametro esterno del tubo (BQ):	57,2 mm (2,25 pollici)
Diametro interno del tubo esterno (BQ):	46 mm (1,81 pollici)	Diametro esterno della camera d'aria (BQ):	42,9 mm (1,69 pollici)
Diametro interno della camera d'aria (BQ):	38,1 mm (1,50 pollici)
Evidenziare:	High Manganese Steel Wireline Drill Rod , Geological Prospecting Drill Rod , 1.5m/3m Length Core Drilling Rod

High-Quality Geological Exploration Drill Rods

Drill rods are essential tools for core drilling operations. High-quality drill rods play a critical role in efficiently obtaining core samples during geological exploration.

Product Overview

Best Drilling Equipment (WUXI) Co., Ltd. provides premium wireline drill rods designed to meet the demands of various working conditions. Our drill rods are manufactured using high-grade heat-treated seamless steel tubes and strictly adhere to industry standards.

Drill Rod Specifications

Size	Length (mm)	O.D (mm)	O.D (inch)	I.D (mm)	I.D (inch)
BQ/B	1500 \| 3000	55.6	2.19	46	1.81
NQ/B	1500 \| 3000	70.1	2.76	60.1	2.37
HQ/B	1500 \| 3000	89	3.5	77.8	3.06
PQ/B	1500 \| 3000	114.3	4.5	101.6	4
BTW/B	1000 \| 1500	57	2.24	48.5	1.91
NTW/B	1000 \| 1500	73.3	2.88	64.3	2.53
HTW/B	1000 \| 1500	91.3	3.59	81.7	3.21

Outer and Inner Tube Specifications

Outer Tube

Size	O.D (mm)	O.D (inch)	I.D (mm)	I.D (inch)
BQ/B	57.2	2.25	46	1.81
NQ/B	73	2.87	60.3	2.37
HQ/B	92.1	3.63	77.8	3.06
PQ/B	117.5	4.63	103.2	4.06

Inner Tube

Size	O.D (mm)	O.D (inch)	I.D (mm)	I.D (inch)
BQ/B	42.9	1.69	38.1	1.50
NQ/B	55.6	2.19	50	1.97
HQ/B	73	2.87	66.7	2.63
PQ/B	95.3	3.75	88.9	3.50

Available Sizes

Standard	Length (m)
BQ	1.5
BQ	3.0
NQ	1.5
NQ	3.0
HQ	1.5
HQ	3.0
PQ	1.5
PQ	3.0

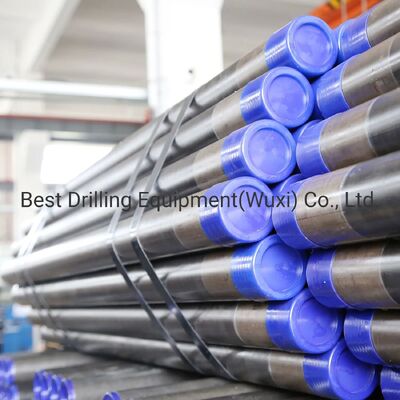

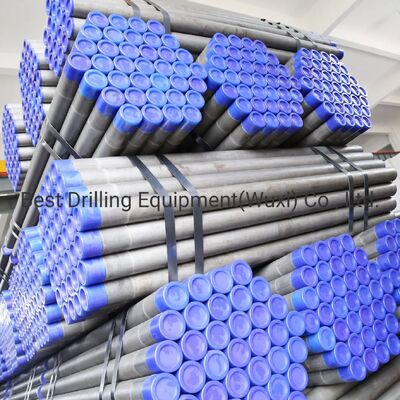

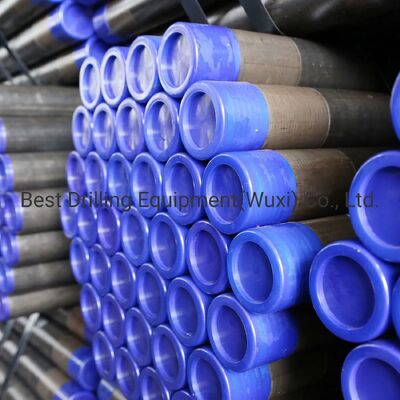

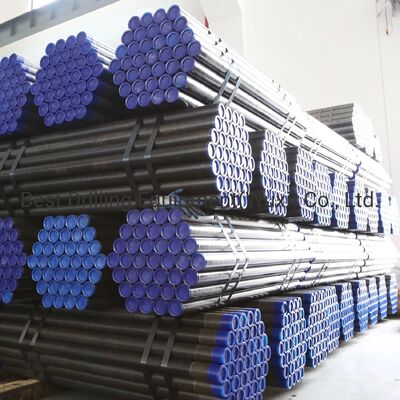

Product Images

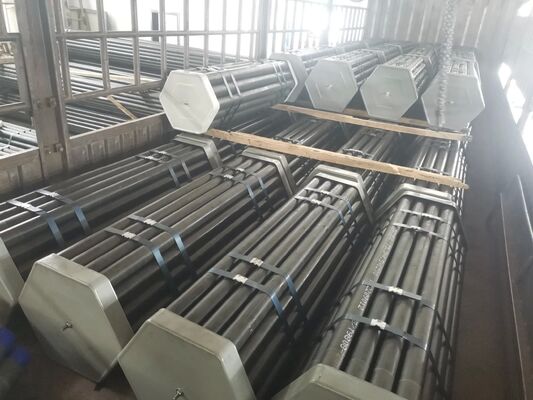

Packaging & Shipping

Frequently Asked Questions

Q1. Where is your factory located?

Our factory is located in Wuxi, Jiangsu, China, approximately 2 hours driving distance from Shanghai.

Q2. How do you control quality?

We are ISO9001 certified and provide Mill Test Certificates. Third-party inspection services are available upon customer request.

Q3. What are your company's advantages?

We employ experienced professionals and technical personnel, offer competitive pricing, and provide exceptional after-sales service.

Q4. Can you arrange shipment?

Yes, we work with trusted forwarders who have partnered with us for years to ensure reliable shipping.

Q5. What is the delivery time?

Delivery time depends on order volume. Typically, we ship within 3 days after receiving advance payment for items in stock.

Q6. Can you provide samples?

Yes, we can provide small samples from our inventory free of charge.
